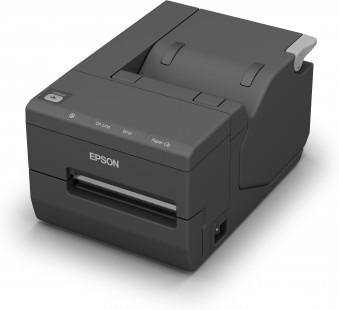

Epson TM-L500A (022): Serial, PS, EDG

Epson TM-L500A (022): Serial, PS, EDG

Check-in desk printer

Streamline airport operations and speed up passenger processing with the Epson TM-L500A, which prints both boarding passes and baggage tags.

Find a dealer

Epson TM-L500A (022): Serial, PS, EDG

The TM-L500A offers a more economical alternative to bespoke airline printing equipment. As it prints both boarding passes and baggage tags, you'll save space and money and won't need to keep an inventory of two different printer types.

Fuss-free integration

Easily integrate the TM-L500A into any airport; the printer is fully compatible with airline communication protocols, including the AEA2009 protocol and all IATA standards for printing boarding passes and baggage tags. It also incorporates a driver for printing from any Windows® application. This wide compatibility protects the future of your investment by supporting IATA’s CUPPS initiative for next-generation airport software platforms.

Improved check-in efficiency

Improve efficiency at the check-in desk and reduce customer queues with the TM-L500A’s fast print speeds. And with its ultra-compact, lightweight design, there’s more placement flexibility, so you can reclaim valuable counter space.

Flexible features

Customise the TM-L500A to meet the individual needs of each airport or airline with a range of options, including LCD screen and control board, RFID reader/writer and external paper roll holder. Adapting for kiosks is simple thanks to the modular construction and removable casing.

Easy to use

Even the most inexperienced operator will find the TM-L500A easy to use. It enables the creation and storage of profiles containing unique settings to make switching between multiple airlines’ settings fast and straightforward.

Key Features

  • 2-in-1 printer: Change print mode & paper in seconds
  • Fuss-free integration: Supports CUPPS & AEA2009 protocol
  • Windows® driver: Print from any Windows® application
  • Easy to use: Store profiles containing settings
  • Small footprint: Free up counter space
BS-Remote Maintenance

Download additional information

Epson TM-L500A (022): Serial, PS, EDG Datasheet / Brochure
Epson TM-L500A (022): Serial, PS, EDG

Tech Specs

Product features and specifications are subject to change without prior notice.

SKU: C31CB49022
Expand All

  • Print type

    Print method
    Thermal line printing
    Technology
    Thermal Line

  • Fonts & Styles

    Print Speed
    250 mm/sec
    Character set
    95 Alphanumeric, 16 set International, 128 x 30 Graphic
    Dot density
    203 DPI x 203 DPI
    Colour Printing
    Single Color

  • Paper

    Paper Types
    Baggage tag, Boarding pass
    Paper size roll paper
    54.00 ± 0.50 (W) mm x dia 184.10 mm,
    79.50 ± 0.50 (W) mm x dia 184.10 mm,
    82.50 ± 0.50 (W) mm x dia 184.10 mm

  • Interfaces

    Interfaces
    RS-232

  • Power

    Power Supply
    PS-180
    Operating Voltage
    24 V

  • General

    Product dimensions
    156‎ x 230 x 122 mm (Width x Depth x Height)
    Product weight
    2.8 kg
    Colour
    Epson Dark Grey
    Installation
    horizontally
    Noise Level
    Operation: 57 dB (A)
    Supported Humidity
    Operation 10% - 80%, Storage 10% - 90%
    Supported Temperature
    Operation 5° C - 45° C, Storage -20° C - 50° C

  • Reliability

    Reliability
    360,000 MTBF (Hours)
    Print Head Life
    100 km

  • Standards Compliance

    EMC Standards
    CE marking
    Safety standards
    TÜV, GOST-R

  • Other Features

    Cutter
    Full Cut
    Sensors
    Black Mark Sensor, Cover Open Sensor

  • What's in the box

    What's in the box
    Main unit, PS-180, User manual

Consumables and Accessories

Choose from a wide range of options and accessories.

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product

Click Here: Epson TM-L500A (022): Serial, PS, EDG
