Epson TM-S9000II-MJ (012): 130DPM, 2 pockets

TM-S9000II-MJ (012): 130DPM, 2 pockets

Cheque scanner and receipt printer

3-in-1 device that enables advanced cheque scanning, filling, and receipt printing

Find a dealer

TM-S9000II-MJ (012): 130DPM, 2 pockets

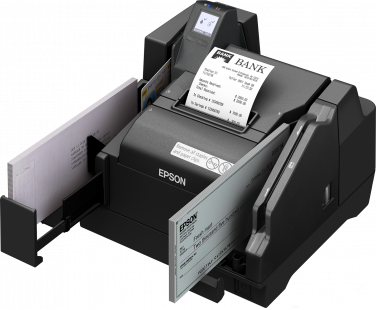

Epson’s TM-S9000II-MJ is a true all-in-one cheque scanner/printer and receipt printer. It's small, compact and offers super-fast, high-quality cheque scanning, detailed cheque images, cashier cheque filling and receipt printing.

Truly multifunctional

In addition to its advanced cheque scanning features, the TM-S9000II-MJ also offers two-sided, 24-bit colour ID scanning an inkjet printer for cashier cheque filling and a thermal receipt printer.

Easy to use

This easy to use and maintain cheque scanner also features, advanced self-diagnostics and an intuitive LCD display that keeps the user informed of the device status at all times, and communicates when interventions are needed.

More than just cheque scanning

In addition to supporting traditional financial markets, the TM-S9000II-MJ also serves other niche markets such as restaurant vouchers and pharmacy prescriptions - speeding up processing times and eliminating unnecessary human intervention.

Stylish Design

Black version fits seamlessly into most environments. Efficient MSR design for improved usability. Compact design - small footprint.

Key Features

  • Better performance: New document processing speeds of 225 and 130DPM
  • Less down time: LCD panel easily shows status, ink levels, errors and when to clean
  • Reliable: Mechanical and electronic parts updated and improved
  • High-quality image acquisition: High-resolution image acquisition, auto skew detection/correction and size adjustment
  • Full compatibility: Drivers and API compatible with previous versions

Tech Specs

Product features and specifications are subject to change without prior notice.

SKU: A41CG59012
Expand All

  • Image Scanner Unit

    Scanning mode
    256-level greyscale, Black and White, Colour, IR (InfraRed)
    Scanner type
    Contact image sensor (CIS)
    Throughput
    130 DPM
    Resolution cut sheet paper
    100 x 100 dpi, 120 x 120 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi
    Resolution ID cards
    200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi
    Data format
    Grey scale: TIFF, JPEG, BMP, Raster, Black and White: TIFF, BMP, 24-bit colour: TIFF, JPEG, BMP, IR (infrared ray): Same as Black and White, Greyscale
    Image Size
    max. 109.728 mm (H) x max. 255 mm (L)
    Scanning speed cut sheet
    1,000 mm/s
    Scanning speed ID card
    118 mm/s
    Scanning side and insertion direction
    Two-sided
    Supported document type
    Normal paper, Check cards, ID cards
    Document size
    110 mm - 235 mm (L) x 60 mm - 120 mm (H)
    ID Cards Type
    ISO/IEC7810 compliant
    ID Cards Size
    85.47 mm - 85.9 mm (L) x 53.92 mm - 54.18 mm (H)
    Pocket capacities
    ASF: 100 Sheets, Main pocket: 100 Sheets, Sub pocket: 50 Sheets
    Pockets
    Single feed pocket, Two output pockets
    MICR reader
    Permanent magnetic bias
    MICR symbologies
    E13B, CMC7
    OCR
    CMC7, E13B, OCR A, OCR B

  • Cut Sheet Paper Unit

    Endorsement Print
    Yes
    Print method
    Line inkjet with inkjet head
    Colour Printing
    Black
    Print height
    50.8 mm
    Printable lines
    12 lines / 16 lines Maximum
    Print width
    90 mm - 215 mm (Depends on the paper length)
    Character structure
    Font A: 12 x 24, Font B: 9 x 17
    Characters per line
    Font A: 59 - 126, Font B: 78 - 169 (Depends on the paper length)
    Character size
    1.41 mm (W) x 3.39 mm (H) / 0.99 mm (W) x 2.4 mm (H)
    Character set
    95 Alphanumeric, 16 set International, 128 x 11 Graphic
    Print speed
    1,000 mm/sec
    Dot density
    180 DPI x 180 DPI
    Paper size check
    60 mm - 120 mm (H) x 100 mm - 235 mm (L)
    Paper Thickness
    0.08 µm - 0.2 µm
    Paper weight
    60 g/m² - 120 g/m²

  • Roll Paper Unit

    Print method receipt
    Thermal line printing
    Print Speed receipt
    300 mm/sec
    Dot density receipt
    180 DPI x 180 DPI
    Column capacity receipt
    Paper width 80 mm, 42 / 56
    Character size receipt
    1.41 mm (W) x 3.39 mm (H) / 0.99 mm (W) x 2.4 mm (H)
    Character set receipt
    95 Alphanumeric, 16 set International, 128 x 11 Graphic
    Paper size roll paper
    79.50 ± 0.50 (W) mm x dia 83.00 mm

  • Reliability - Recept printer unit

    Print Head Life receipt unit
    150 km
    Auto Cutter Life
    2,000,000 Cuts
    Reliability Receipt Printing
    96,000,000 MCBF (Lines), 360,000 MTBF (Hours)

  • Reliability - Cut sheet paper / Image scanner unit

    Product mechanism life cut sheet paper/ image scaner unit
    2 million item (including reading of checks and ID cards)
    ASF life
    2 million item
    Printer head life cut sheet paper/image scaner unit
    6,000 million shots/nozzle
    Reliability cut sheet paper/image scaner unit
    4,940,000 MCBF (Cycles), 180,000 MTBF (Hours)

  • General

    Colour
    Black (EBCK)
    Paper Types
    Cheques
    Interfaces
    USB 2.0
    Operating Voltage
    24 V
    Power Supply
    PS-180 & EURO AC cable
    Product dimensions
    275‎ x 410 x 206 mm (Width x Depth x Height)
    Product weight
    5.7 kg
    EMC Standards
    CE marking, EN55024, EN55032 Class A, Directive 2014/30/EU
    Safety standards
    TÜV (EN62368-1)
    What's in the box
    2 x Ink cartridge, PS-180 & AC cable, Setup guide, USB cable
    Supported Humidity
    Operation 20% - 80%, Storage 20% - 85%
    Supported Temperature
    Operation 10° C - 35° C, Storage -20° C - 40° C
