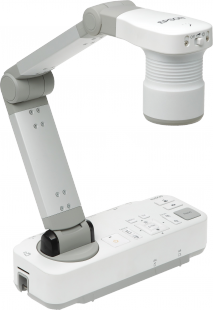

ELPDC20

The desktop ELPDC20 is the ideal classroom visualiser for teachers looking to enrich lessons with high-quality images. The large 1/2.7 inch CMOS sensor and HDMI interface enable close-ups of images or 3D objects in full HD 1080-pixel high-definition resolution. Images can be displayed up to a 120x maximum zoom, and live feeds are shown with minimum time delay, due to a rapid frame rate of 30fps.

The visualiser is packed full of features to enhance classroom teaching. A3-size materials, such as maps and large diagrams, can be easily projected, and the LED light helps illuminate difficult-to-see objects. A split-screen display allows two different sources to be connected at the same time, and real-time microscopic worlds can be observed using the microscope attachment.

A sturdy viewing arm ensures the visualiser stays in a fixed position during presentations. It can be rotated in three different directions for greater flexibility of use, then easily folded away for storage. Added security bar/locks provide schools with peace of mind when the visualiser is not in use.

With PC-free functions, such as real-time annotation, a USB mouse can be connected directly to the visualiser for drawing on live images and illustrating teaching points. The PC-free record-and-replay feature means video footage can be filmed and stored straight onto the 1GB internal memory, then played back in future lessons.

Teachers can liven-up classes with the advanced software included. Time-lapse video, for example, can be used to record video footage for up to 72 hours, allowing gradual events, such as plant growth, to be filmed for use in science lessons. With the built-in microphone, teachers can also add audio commentary to video files, and tag and upload videos to video-sharing websites.

Key Features

Full HD resolution: 1920x1080p resolution output
Sharp details: 12x optical and 10x digital zoom
Close-up images: Microscope attachment included
Advanced software: 72-hour time-lapse video
PC-free features: Real-time annotation

Download additional information

ELPDC20 Datasheet / Brochure

Tech Specs

Product features and specifications are subject to change without prior notice.

SKU: V12H500040

Expand All

What's in the box

AC adapter, Computer cable, Main unit, Microscope Adapter, Power cable, Remote control incl. batteries, Software (CD), USB cable, User's Manual Set

Technology

Image pick-up device

1/ 2.7 " CMOS sensor

Effective Pixels

1920 Horizontal x 1080 Vertical

Frame Rate

max. 30 fps

Optical

Zoom

Optical 12, Digital 10

Focus

Auto

Shooting Area

A3 sized: 297 x 420 mm


Resolution Output

SXGA(1280*1024)/XGA(1024*768)/WXGA 16:10 (1280*800)/WXGA 16:9 (1360*768)/1080p (1920*1080), 480p/ 720p/ 1080p, QVGA/VGA/SVGA/XGA/SXGA

Image Adjustments

Auto Exposure, Black and White, Brightness Adjustment, Colour, Contrast Adjustement, Image Rotation, Microscope mode

Connectivity

Interfaces

USB 2.0-A, USB 2.0, VGA in, VGA out, HDMI out, built-in microphone, Microphone input, SD card

Advanced Features

PC-Free Recording & Playback

Video recording with sound (AVI @ 720p), Image capture (JPEG @ 1920x1080)

PC-Free ImageViewer

View images from internal or supported external memory

Image Storage

1GB internal memory, SD/SDHC compatibility (128MB-32GB), USB memory device compatibility (128MB-64GB)

Application Software

Still or live annotation with sound, edit, file management, preview, still image capture(JPEG/BMP), tag function, time lapse function up to 72 hours, video capture (WMV/MPG/AVI/MOV), web upload

Features

Auto detect aspect ratio, Auto focus, Auto output resolution, Freeze, Slideshow, Split screen, Video capture and replay, Zoom

Security

Kensington lock, Security bar

General

Power consumption

17 Watt, 0.48 Watt (standby)

Product dimensions

Operating: 270 x 312 x 477 mm (Width x Depth x Height)

Product weight

3 kg

Illumination

LED lights

Included Software

ArcSoft Application Software for Epson Document Camera, Button manager for Epson Document Camera, TWAIN driver for Epson Document Camera (for Windows)
