ELPDC06

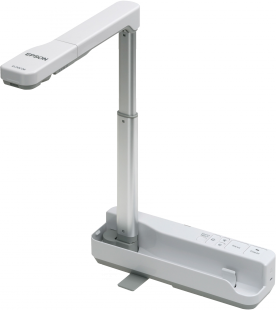

You might have wondered how to display large printed pages and illustrated documents without first photocopying them? And what about showing 3D or fragile objects close up to a large audience? Now you can do all this, with the Epson ELP DC-06 visualiser, a portable and adjustable camera that attaches directly to a computer or the latest Epson projectors.

Innovative, flexible and easy to use

Incorporating our advanced technologies, the Epson ELP DC-06 is a compact and affordable desktop solution for enlarging the source materials you can display while drastically cutting preparation time. The Epson ELP DC-06 visualiser only takes seconds to set up. You can connect directly to the new Epson EB-8 projector series and future Epson projectors thanks to the direct USB connection and two-in-one cable. It also lets you work via a computer. Just plug in, unfold the arm and you´re ready to focus.

Highly portable, modern design

The Epson ELP DC-06 visualiser does not need a separate power supply, making it very compact. It is light, and the arm folds down neatly into the base making it easy to carry. With power consumption of less than 2.5W it meets modern ecological standards.

Lively presentations

Visual quality is guaranteed with 2 million pixel resolution and powerful zoom allowing you to focus on details. The camera can be turned 90° in different axis and the height adjusted, so you can even capture 3D objects, or an entire board.

Key Features

  • Easy to carry, weighs under 1kg
  • Two-in-one USB cable connection
  • Powerful 4x digital zoom, 90° head rotation and autofocus function
  • Practical freeze function
  • Secure with Kensington lock hole

Download additional information

ELPDC06 Datasheet / Brochure
Visualiser - ELPDC06 - USB type

Tech Specs

Product features and specifications are subject to change without prior notice.

SKU: V12H321003
  • What's in the box

    What's in the box
    Carrying bag, Main unit, Quick Start Guide, USB cable, User manual (CD)
  • Technology

    Image pick-up device
    1/ 3 " CMOS sensor
    Effective Pixels
    2 M Pixels
    Frame Rate
    max. 15 fps
  • Optical

    Zoom
    Digital 4
    Focus
    Auto
    Shooting Area
    273 x 364 mm
  • Image

    Resolution Output
    QVGA/VGA/SVGA/XGA/SXGA
    Image Adjustments
    Auto Exposure, Image Rotation, White Balance (Auto/Fluorescent/Incandescent/Cloudy/Daylight)
  • Connectivity

    Interfaces
    USB 1.0
  • Advanced Features

    Features
    Auto focus, Freeze, Zoom
    Security
    Kensington lock
  • General

    Product dimensions
    Folded: 260 x 76 x 60 mm (Width x Depth x Height), Operating: 260 x 76 x 388 mm (Width x Depth x Height)
    Product weight
    0.9 kg
    Included Software
    ArcSoft Application Software for Epson Document Camera, Button manager for Epson Document Camera
